DIY Layout Creator 1.19

If you get used to working with electronic circuits few tools will be as useful as DIY Layout Creator.

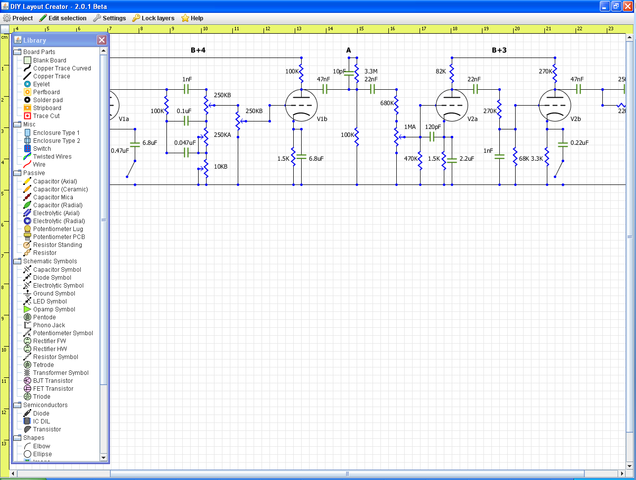

Thanks to it you can design all kinds of circuits based on electronics, editing them the way you want. Some of the elements that can be added are summarized in transistors, resistors and switches, as well as indicators that show information such as voltage and polarity.

Unlike other similar programs, DIY Layout Creator is extremely easy to use. Its interface is really intuitive, just a few minutes to obtain an electronic circuit design fully adapted to your needs.
